Pic Project Breadboarding/Developer Starter Set:
|
$12.33 each |
|
|
A collection of our items from a recent board stuffing bankruptcy. In "as new" condition received in original packaging. This is perfect for one or more small to medium PIC development or breadboarding projects. Especially those involving SMD 16C63's or 16C73's or similar flash or OTP Microchip 28 pin devices.
Yes, flash programming is specifically supported!
Includes a "medium" pc board with ac line power supply capabilities for A/D and relay projects, two "small" pc boards for 7-segment display projects, a superb power transformer, 5v linear regulator assembly with heatsink, three power relays, three 7 segment displays, one triac optoisolator, a 1.5 amp bridge rectifier, a 4.000 Megahertz crystal, an LM311 comparator, a 4700 uf 25 v capacitor, connectors, and a few smaller items. All of which nicely fit together.

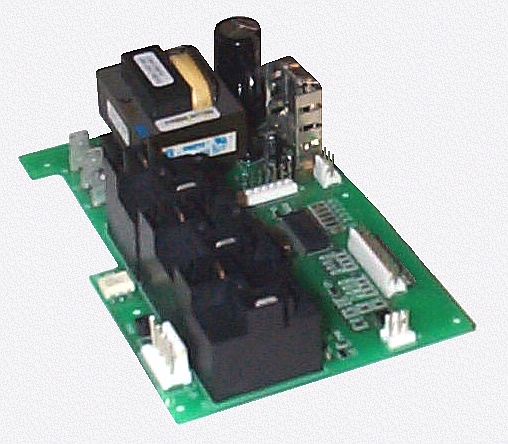

The image shows how the parts worked together in the "medium board" of the original application. Note that all parts supplied are "as new", unconnected, unsoldered, and with normal full lead lengths.
Approximate shipping weight : 1 pound.
Available in large quantities.
|
|
|
|
.
|
Potter & Brumfield T9AS1D22-5 pcb power relay:
|
$1.39 each
ten for $9.90 |
|
|
THE perfect relay for PIC and other microprocessor projects. One inch cube provides 240 volt 30 amp SPST contacts that go out the bottom for pc board use and protected out the top for test and/or direct crimp lug wiring access. 5 volt, 200 Ohm coil easily driven by a transistor.
You can click here for the full P&B data sheet and technical specs. Distributor price is $3.05.
Perfect for robotics, machine tool interface, power controls, a/c and environmental switching, etc... etc... UL rated. Clean "As new" condition received in original packaging from a board stuffing bankruptcy. Guaranteed servicible. Companion PC boards, driver transistors, and many related parts separately available.
Approximate shipping weight: a few ounces.
Available in large quantities.
|
|
|
|
.
|
PREM 8v 0.62 amp pc mount power transformer:
|
$3.39 each ten for $27.90 |
|
|
Priced any transformers lately? Lower quality imitations to these premium PREM units sell for over $10 each.
Super clean "As new" stock received in original packaging from a board stuffing bankruptcy. Prem SPW1102 has split primary for 110/220 volt 60 Hertz input. Split outputs can be combined in parallel for 8 volts 0.62 amps or in serial center tapped for 16 volts 0.31 amps. This is the absolutely ideal supply transformer for PIC and other microcomputer projects.
Also marked PREM A014 Class 2 not wet class 3 wet. Approximately a 1-1/2 inch cube. Guaranteed servicible. Underwriters Labs rated Class B/T. Also SA rated.You can click here for the Prem Magnetics data sheet and technical specs.
Companion circuit boards and power supply components separately available.
Approximate shipping weight: a few ounces.
Available in large quantities.
|
|
|
|
.
|
Excelsus Z-Blocker z-200SM phone line filter:
|
$3.79 each
10 for $28.50 |
|
|
Simple plug-in attachment isolates ADSL, HomePhone, HomeRun or other high frequency signals from voice frequency interference. Essential when using one phone line for both voice comm and networking. Clean "as new" sealed telecom bankruptcy surplus. Normal wholesale price is $8.90 each.
You can click here for the full Z-Blocker data sheet and technical specs.
Approximate shipping weight: A few ounces each.
Available in quantity.
|
|
|
|
.
|
40 foot quality antenna or lab cable PL-259 x BNC:
|
$5.92 each
10 for $49
|
|
|
Monaco Enterprises #626-00-02. Consists of forty feet of high quality 50 Ohm quarter inch coax terminated at one end in a standard PL-259 connector and at theo ther in a standard BNC connector.
Shrink wrap carded. Perfect for mobile and base station radios, antennas, lab tests, system interconnects, etc...
Genuine Belden 9258 RG-8/x 50 Ohm cable and Amphenol 74868 connector.
Unused military surplus. Cable itself is garanteed to be sealed, bright, clean, and as new. Carding may include mild to severe storage cosmetics and might be appropriate for retail display.
You can click here to reach the Monaco Website.
Image shown is typical. Other styles and lengths available.
Please email me for details.
Approximate shipping weight: 2 pounds per cable.
Available in quantity.
|
|
|
|
.
|

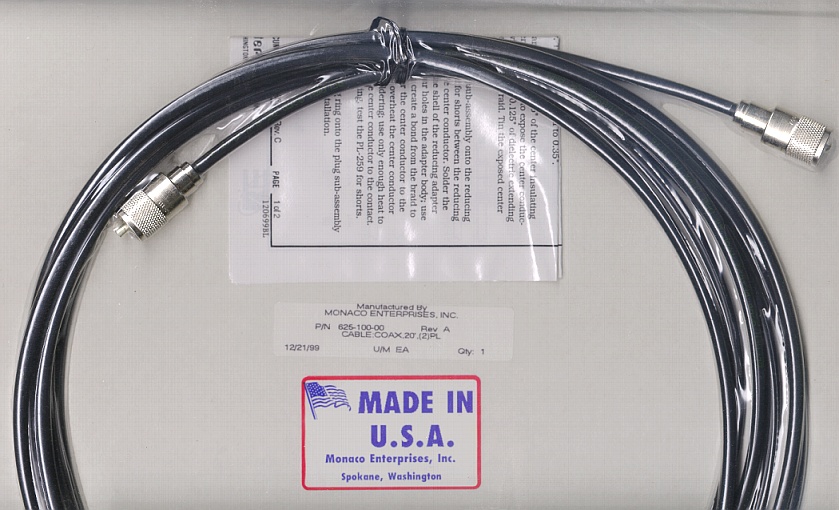

20 foot quality antenna or lab cable PL259 x PL259:
|
$4.92 each
10 for $39
|
|
|
Monaco Enterprises #626-00-02. Consists oftwenty feet of high quality 50 Ohm quarter inch coax terminated at both ends with standard PL-259 connectors.
Shrink wrap carded. Perfect for mobile and base station radios, antennas, lab tests, system interconnects, etc...
Genuine Belden 9258 RG-8/x 50 Ohm cable and Amphenol 74868 connector.
Unused military surplus. Cable itself is garanteed to be sealed, bright, clean, and as new. Carding may include mild to severe storage cosmetics and might be appropriate for retail display.
You can click here to reach the Monaco Website.
Other styles and lengths available.
Please email me for details.
Approximate shipping weight: 1 pound per cable.
Available in quantity.
|
|
|
|
.
|

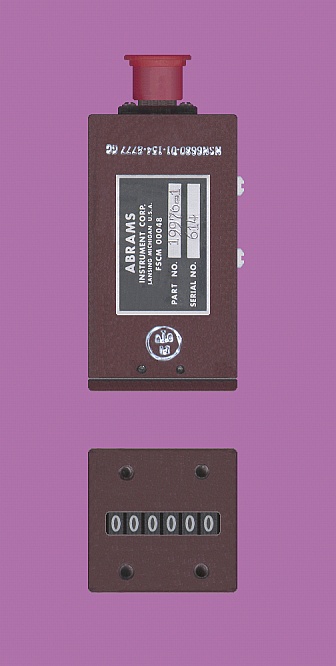

Abrams six decade electromechanical events counter:
|
$5.92 each
10 for $39
|
|
|
The feds paid over $277 each for these super premium electrically driven and exceptionally rugged events counters. They are in mint condition, still triple sealed in their original military packaging.
Abrams Instruments 19976-1 Counts zero to one million using a 24 volt dc 100 millisecond pulse. 1-1/2 inch square face, 3 inch depth, 0.2 inch white on black numbers. Intended for count-up applications such as copy counts. Can be made into an elapsed time meter by applying one pulse per minute or one per hour.
Resetting appears difficult but possible. Beautiful black annodize finish
Approximate shipping weight: 1 pound per counter.
Available in quantity.
|
|
|
|
.
|
Marconi BUPS Phone Building Entrance Protector:
|
$79.75
|
|
|
Current production Marconi model BUPS25MMVREF, part number F1002399. Mint condition from a telecom bankruptcy auction. Apparently unused "as new" unopened from original factory packaging.
These are basically a pretty green steel box that measures 5 x 16 x 16 inches. They go between you and your phone company for primary site access. They may be used indoor or outdoor and be wall or pole mounted. Offers RLS outputs and accepts 3M 4000-D dry (MS^2)inputs.
This model currently handles 25 input pairs but is easily expandable to 50, 100, or even more pairs. Includes 25 gas-type switching surge protectors that normally sell for nearly $3 each. The protectors are doubly isolated from weather by a special internal latchable and gasket sealed box.
Includes docs, mounting template, test probe, and bunches of wiring accesories.
You can click here for the full Marconi BUPS data sheet and technical specs.
Approximate shipping weight: 33 pounds.
Available in quantity.
|
|
|
|
.
|

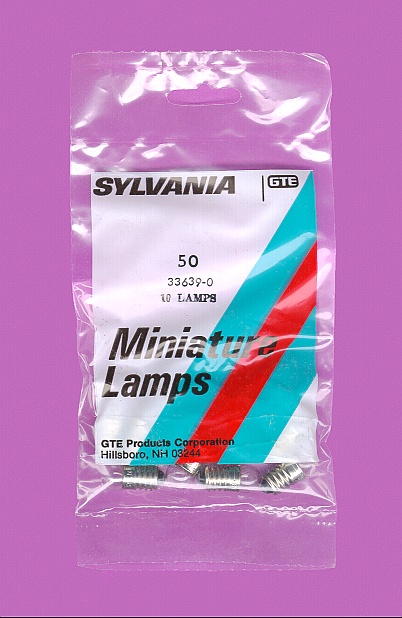

Ten # 50 miniature pilot light lamp bulbs:
|
pkg 10 for $3.90 |
|
|
Very hard-to-find bulbs are perfect for student projects, displays, radio restorations, dance decorations, shows, etc... These #50 bulbs are rated 7.5 volts, 220 mills, 1.65 watts and 1 spherical candlepower. G 3-1/2 bulb with a miniature screw base typical of some flashlights.
Give much longer life when replacing 6.3 volt bulbs.
Very clean and apparently unused mil surplus in double (box + poly) original Sylvania GTE packaging. TEN bulbs per package.
Shipping weight : a few ounces per box of ten.
Available in quantity.
|
|
|
|
.
|
