Besides its obvious intended purpose, this compact top quality Tek switching mode power supply system seems perfect for many mid-sized mixed analog/digital systems.

Consists of two units, a 7x10x10 inch, 110 volt ac powered, fan cooled aluminum cube and a fused distribution card. Four DIP connectors go between supply and card. The card itself terminates in a 100 pin 2x50 0.1 edge connector.

No docs. Test points on the card greatly simplify tracing and dealing with the remote sensing. The fuses are on the six highest power outputs and are ~inside~ the sensing loops.

We are not sure of the exact ratings, but there appear to be a pair of high current MECL supplies of the usual -2 and -5.2 volts. Five additional high current supplies provide +5 volts, +15 volts, -15 volts, +50 volts and -50 volts. There also appears to be a pair of higher voltage, lower current supplies of +130 volts and +365 volts. Raw unregulated +17 and -17 might also be available.

Removed from clean and apparently low use mil surplus equipment. Untested. Believed fully functional, guaranteed servicible. Includes BNC connectors for remote enable and actuate.

Any and all other 7912AD parts and full systems also available.
email for details.

Approximate shipping weight: 22 pounds.
Available in quantity.

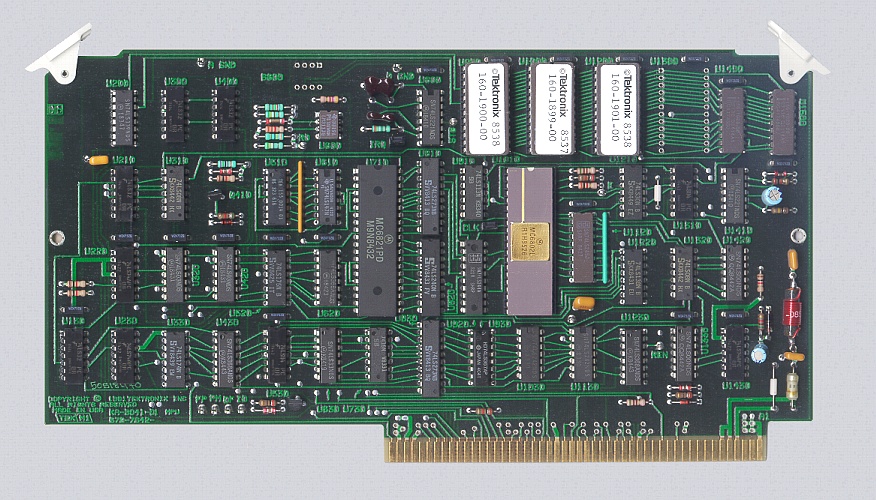

Set of nine active electronics plugin circuit board cards for a $40,000 tek 7912AD high speed digitizer scan converter. Untested, believed fully functional, guaranteed servicible. Removed from clean mil surplus believed to have low use hours. No docs. Mainboards, power supplies, fuse cards, CRT assemblies and most other parts separately available.

Image shown is typical..

Any and all other 7912AD parts and systems are also available.
email me for details.

Approximate shipping weight: 12 pounds.
Available in quantity.
